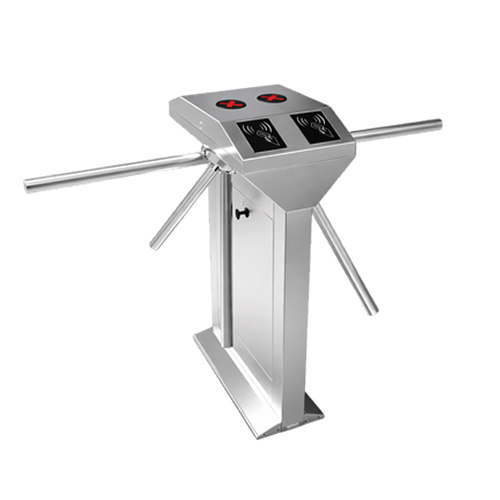

SUS316 Stainless Steel Tripod Turnstile Barrier

Get a Price/Quote

MOQ : 1 Unit

SUS316 Stainless Steel Tripod Turnstile Barrier Specification

License Free
No

Size
Approx. 480mm x 280mm x 980mm

Operating Mode
Single or bi-directional, manual/automatic

Mounting Type
Floor Mounted

Connectivity Type
Supports RS485, TCP/IP (optional)

Standard
SUS316 Stainless Steel, ISO9001

Interface
RS485, relay signal interface

Technology
Mechanical and electronic integration

Special Features
Anti-tailgating, Bi-directional control, Automatic reset, LED direction indication

Application
Office buildings, Metro stations, Factories, Airports, Public areas

Power Supply
AC 220V/110V 10%, 50/60Hz

Output Formats
Dry contact and relay output for access controllers

Relative Humidity
95%, non-condensing

Throughput Rate
20-30 persons per minute

Arm Length
Standard 500mm

Material
SUS316 Stainless Steel Housing

Noise Level
Low noise operation (<60dB)

Unlock Time
0.2 seconds

Weight
Approx. 45kg

Control System
Compatible with card reader, fingerprint, face recognition (optional)

Finish
Brushed stainless steel

Passage Width
Standard 550mm; custom options available

Operating Temperature
-25C to +70C

Safety Features
Anti-panic, drop arm on power failure

Usage Life
5 million cycles minimum

Ingress Protection
IP54

Turnstile Arm Mechanism
Electro-mechanical drive

SUS316 Stainless Steel Tripod Turnstile Barrier Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
100 Units Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About SUS316 Stainless Steel Tripod Turnstile Barrier

Unlock supreme security and seamless flow with our SUS316 Stainless Steel Tripod Turnstile Barrier. Crafted from valorous and gorgeous SUS316 stainless steel, it features a brushed finish for a modern appeal and enduring strength. With a popular passage width of 550mm (customizable), each arm spans 500mm to accommodate safe, comfortable entry. This fresh solution operates reliably in temperatures from -25C to +70C and relative humidity up to 95%. The electro-mechanical drive, anti-panic features, and fast unlock of 0.2 seconds ensure secure, smooth throughput of up to 30 persons per minute-perfect for busy, high-security environments where performance matters.

Versatile Application for Supreme Safety

The SUS316 Stainless Steel Tripod Turnstile Barrier is valorous in office buildings, metro stations, factories, airports, and other public areas for efficient access control. Designed for both single and bi-directional usage, it is ideal for plant entrances requiring robust, controlled entry. Its mechanical and electronic integration supports manual or automatic operation, meeting the demands of high-traffic environments. The fresh, brushed stainless steel finish blends seamlessly into both indoor and outdoor applications, delivering superior reliability and security across multiple fields.

Sample Policy & Export Details

Our sample policy is tailored for your proposal amount, ensuring clarity and satisfaction before you commit to a larger supply. We promise quick dispatch from India with competitive FOB port options. Our main export markets include Asia, the Middle East, Africa, and Europe. Each shipment benefits from efficient supply management to meet your project timelines. Reach out to us for custom requirements, and experience our commitment to swift, reliable service on every order.

FAQ's of SUS316 Stainless Steel Tripod Turnstile Barrier:

Q: How does the SUS316 Tripod Turnstile Barrier ensure secure entry in public areas?

A: The tripod turnstile utilizes an electro-mechanical drive with anti-tailgating and bi-directional control features. Its anti-panic mechanism drops the arm during power failures, providing safety and preventing unauthorized access.

Q: What are the usage and installation options for this stainless steel turnstile?

A: It is designed for floor mounting and can be used in single or dual-direction modes, with either manual or automatic operation-perfect for offices, transport hubs, factories, and plants.

Q: When should the turnstile's custom passage width be selected?

A: Custom passage widths can be chosen at the ordering stage to accommodate specific space or accessibility requirements in your area of installation.

Q: Where can the SUS316 Stainless Steel Tripod Turnstile be effectively implemented?

A: This barrier is extensively used in high-traffic environments like office buildings, metro stations, factories, airports, and other public areas needing controlled, secure access.

Q: What is the process for integrating access control systems with the turnstile?

A: The turnstile supports RS485 and relay signal interfaces, making it compatible with card readers, fingerprint, and face recognition systems. Integration can be done during installation or upgraded later as needed.
